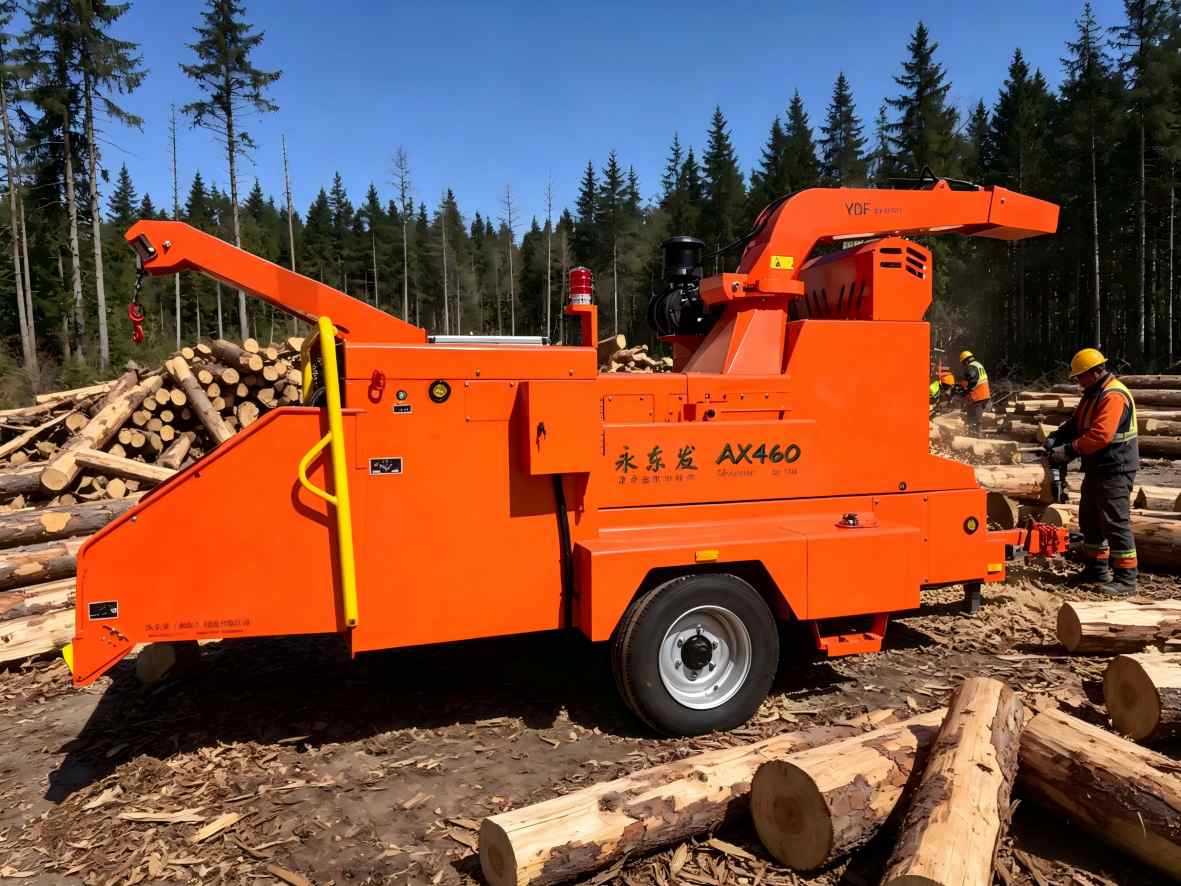

AX460 – Your 18 Inch Wood Chipper
The AX460 18 inch wood chipper is designed for heavy-duty wood processing. Its Cummins B5.9CS4 6-cylinder diesel engine delivers 129 kW / 175 HP with 800 Nm torque, making it perfect for cutting large-diameter wood quickly and efficiently.
- Automatic clutch for quiet operation and long service life
- Tool-roller cutting system with 4 durable knives
- Cutting disc diameter: 91.4 cm (18 inch chipper standard)
- Maximum cutting size ≤46 cm
Cutting System – Precision Meets Durability
- High-Speed Rotation: 1100 rpm for smooth processing
- Imported A8 Tool Steel Inserts: Longer-lasting sharpness
- Separated Cutting Components: Easier maintenance and improved compatibility
The AX460’s 18 inch wood chipper system ensures smooth, efficient cuts every time.
Smart Feeding & Discharge
- Double Vertical Feed Rollers: Compact design, space-saving
- Infeed Opening: 141.6 × 193 cm
- Infeed Throat: 524 × 611 mm
- Infeed Roller Size: 597 × 457 mm
- Chute Height & Rotation: 280 cm, >270° hydraulic rotation with self-locking
This feeding and discharge design allows the 18 inch chipper to process logs fast, safe, and continuously.
Safety You Can Trust
The AX460 is loaded with intelligent safety features:
- Lower feed stop rod with two sensitivity levels
- Position feed control lever: Emergency stop, feed, neutral, reverse
- Cutterhead bin safety switch & infeed emergency stop (both sides)
- Emergency pull rope for instant halt
- Intelligent safety sensing system
Operators can work confidently knowing safety is built in.
Advanced Electrical & Control System
- Voltage: 12V with 950A cold start battery
- Instruments: Tachometer, hour counter, fuel gauge, water temperature, oil pressure, engine error codes
- Switches: Throttle, feed rod sensitivity, chute rotation, wood diameter selection
- Controller & Display: Intelligent LED display with automatic shutdown at high temperature or low oil
The 18 inch wood chipper is smart, easy to monitor, and reduces downtime.
Specifications & Dimensions
- Overall Size: 567 × 226 × 280 cm
- Weight: 4,200 kg
- Fuel Tank: 132.5 L diesel
- Max Power: 129 kW / 175 HP
The AX460 is built for long-term heavy-duty work, combining strength, reliability, and ease of maintenance.
Applications of AX460 - 18 Inch Wood Chipper
- Forestry and timber operations
- Landscaping companies
- Municipal brush and debris management
- Agricultural wood processing
Get Your AX460 18 Inch Wood Chipper Now
For a 18 inch wood chipper that combines power, precision, and safety, the AX460 is your best choice.
Contact us today to learn more about pricing, availability, and customization options.
